P-60 CNC Air Plasma Cutting Torch
1.High frequency air plasma cutting torch.
2.Suit for CUT60 plasma cutting machine.
3.Rated currect is for 60amp
4.Cutting thickness is for 15-20mm
0
|
Technical Data |
|
|
Current |
60 Amp |
|
Duty Cycle |
60% |
|
Gas |
Air |
|
Gas Pressure |
3.5-4.0 Bar |
|
Gas Flow |
163LPM |
|
Ignition |
HF (high frequency) |
|
Post Flow |
40 Seconds |
|
Cutting Thickness |
15-20mm |
|
Standard Length |
5M / 8M |

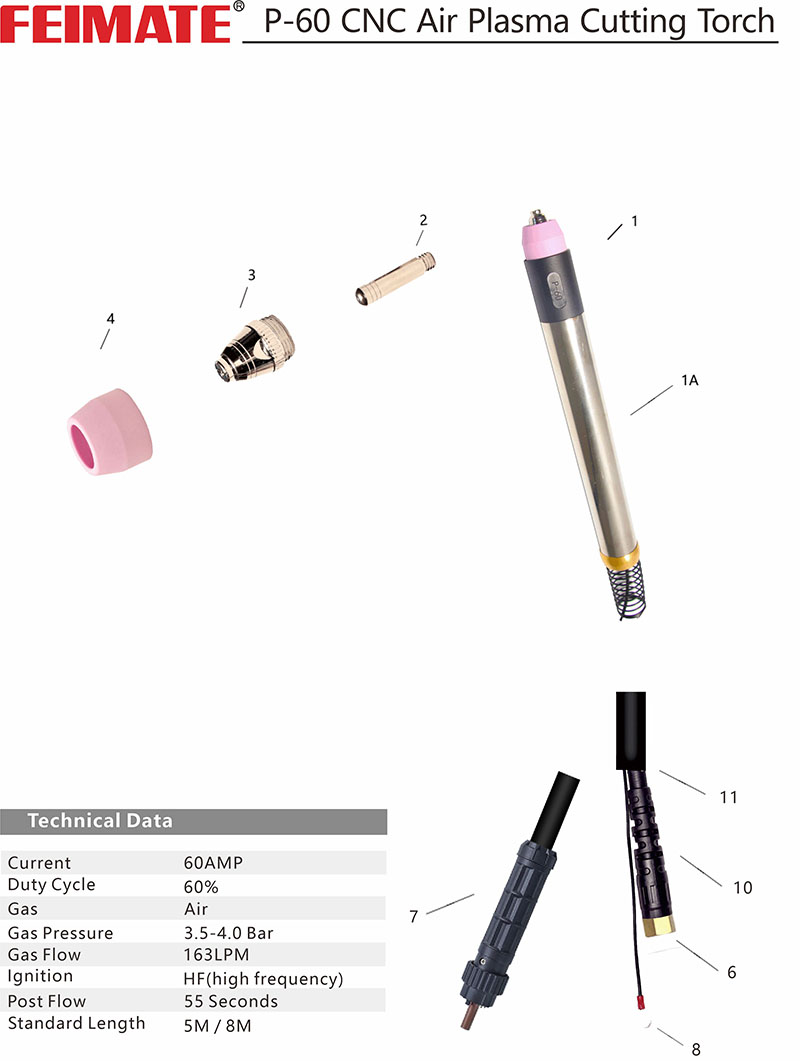

Products Specification:
|
NO. |
Code |
Description |
Ref |
|
1 |
SP6001 |
Torch Head |
|
|
|
SP6001A |
Stainless Steel Straight Handle |
|
|
2 |
P6002/AG6002 |
Electrode |
|
|
3 |
P6003/AG6003 |
Tip 1.2mm |
|
|
4 |
AG6004 |
Shield Cup |
|
|
5 |
P6005 |
Spacer Spring (NO) |
|
|
6 |
P6006 |
End Connector (M16*1.5 Nut) |
|
|
7 |
P6007 |
Central Adaptor |
|
|
8 |
P6008 |
2-Pins Plug (NO) |
|
|
9 |
P6009 |
Protection sleeve |
|
|
10 |
P6010 |
Cable Assembly (6MMSQ) |
|
|
11 |
P6011 |
Pilot Arc Wire |
|
