1.High frequency air plasma cutting torch.
2.Suit for CUT80-100 plasma cutting machine.
3.Rated currect is for 80Amp-100Amp.
4.Cutting thickness is for 15-30mm.
|
Technical Data |
|
|
Current |
80-100 Amp |
|
Duty Cycle |
60% |
|
Gas |
Air |
|
Gas Pressure |
4.5-5.0 Bar |
|
Gas Flow |
200LPM |
|
Ignition |
HF (high frequency) |
|
Post Flow |
80 Seconds |
|
Cutting Thickness |
15-30mm |
|
Standard Length |
5M / 8M |

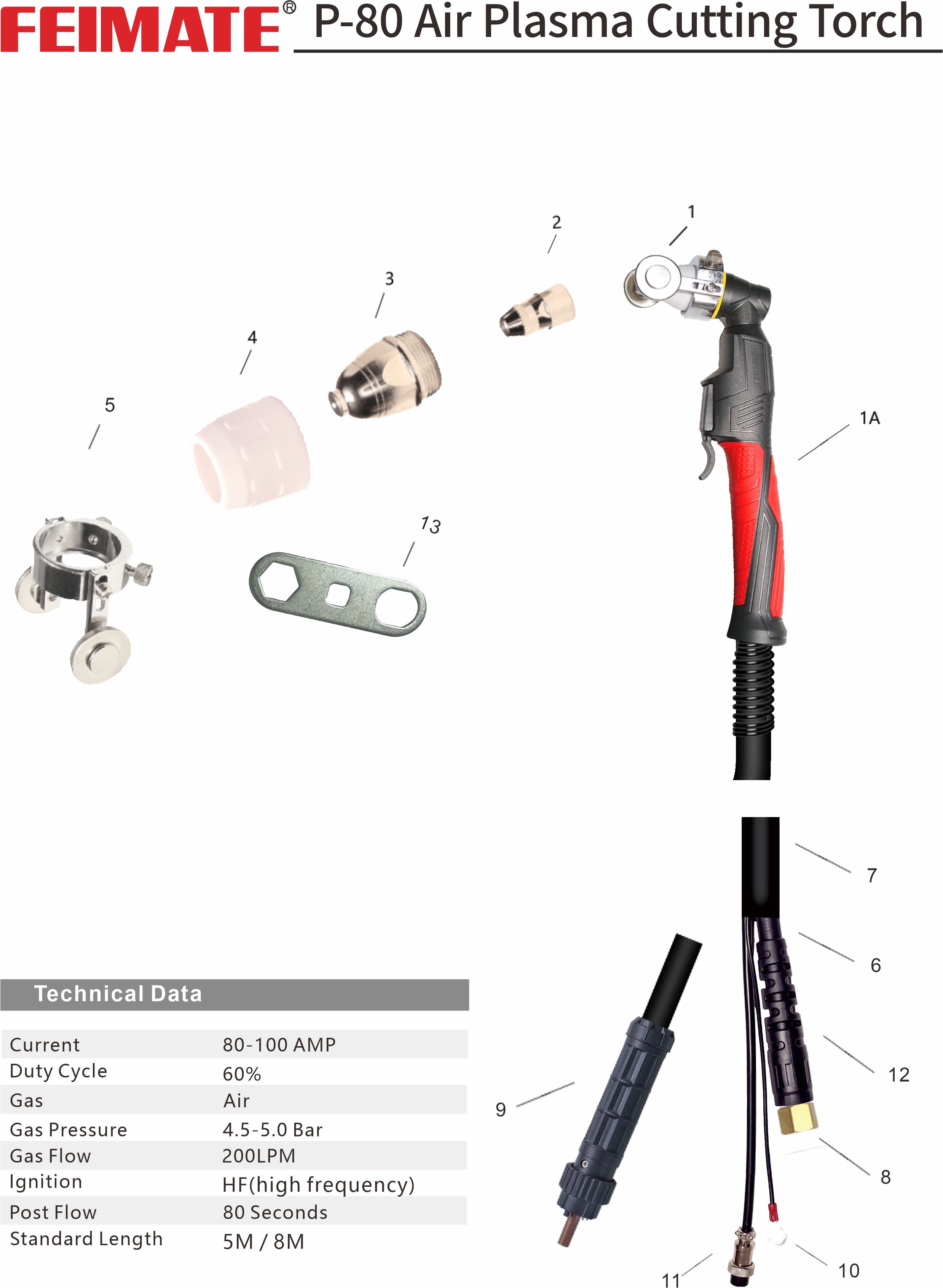

Products Specification:
|
NO. |
Code |
Description |
Ref |
|
1 |
P8001 |
Torch Head |
|
|
|
P8001A |
Torch Head (Black&Green handle) |
|
|
|
P8001B |
Torch Head (Kylin handle) |
|
|
|
P8001C |
Torch Head (2019th handle) |
|
|
|
P8001D |
Torch Head (Round handle) |
|
|
2 |
P8002 |
Electrode (Hafnium) |
|
|
3 |
P8003A |
Tip 1.1mm |
|
|
|
P8003B |
Tip 1.3mm |
|
|
|
P8003C |
Tip 1.5mm |
|
|
|
P8003D |
Tip 1.7mm |
|
|
4 |
P8004 |
Shield Cup |
|
|
5 |
P8005 |
Guide Carriage |
|
|
6 |
P8006 |
Cable Assembly (12MMSQ) |
|
|
7 |
P8007A |
Fireproof Cover |
|
|
|
P8007B |
PVC Cover |
|
|
8 |
P8008 |
End Connector (M16*1.5 Nut) |
|
|
9 |
P8009 |
Central Adaptor |
|
|
10 |
P8010 |
Pilot Arc Wire |
|
|
11 |
P8011 |
2-Pins Plug |
|
|
12 |
P8012 |
Protection sleeve |
|
|
13 |
P8013 |
Spanner |
|
