SG-51 Air Plasma Cutting Torch
1.High frequency air plasma cutting torch.
2.Suit for CUT60 plasma cutting machine.
3.Rated currect is for 50amp
4.Cutting thickness is for 15-18mm
0
|
Technical Data |
|
|
Current |
50 Amp |
|
Duty Cycle |
60% |
|
Gas |
Air |
|
Gas Pressure |
4.5-5.0 Bar |
|
Gas Flow |
155LPM |
|
Ignition |
HF (high frequency) |
|
Post Flow |
40 Seconds |
|
Cutting Thickness |
15-20mm |
|
Standard Length |
5M / 8M |

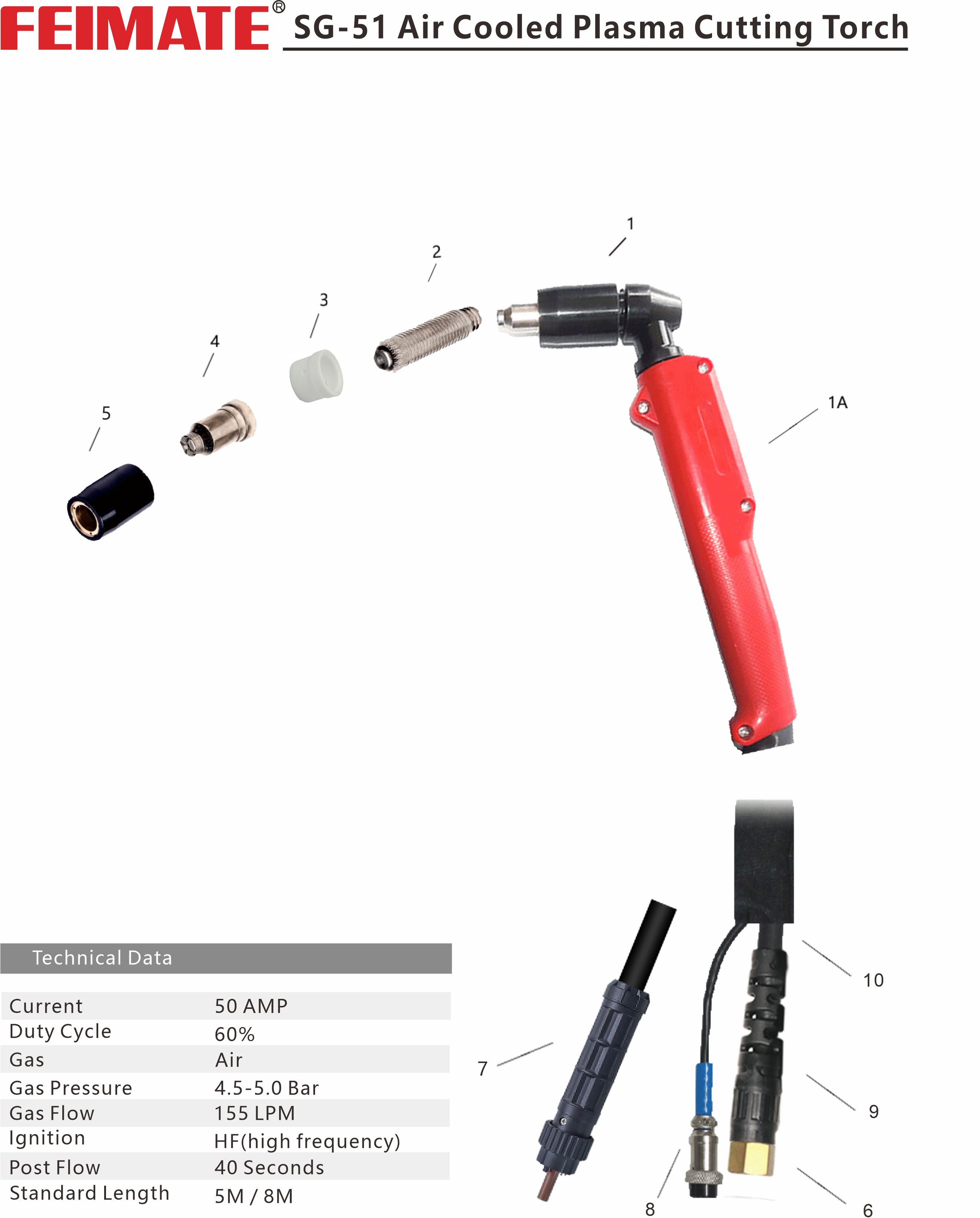

Production Specification:
|
NO. |
Code |
Description |
Ref |
|
1 |
SG5101 |
Torch Head |
|
|
|
SG5101A |
Torch Head (Square handle) |
|
|
2 |
SG5102 |
Electrode |
|
|
3 |
SG5103 |
Gas Diffuser |
|
|
4 |
SG5104 |
Tip 1.2mm |
|
|
5 |
SG5105 |
Shield Cup |
|
|
6 |
SG5106 |
End Connector (M16*1.5 Nut) |
|
|
7 |
SG5107 |
Central Adaptor |
|
|
8 |
SG5108 |
2-Pins Plug |
|
|
9 |
SG5109 |
Protection sleeve |
|
|
10 |
SG5110 |
Cable Assembly (6MMSQ) |
|
