TC-80 Air Plasma Cutting Torch
1.High frequency air plasma cutting torch.
2.Suit for CUT80 plasma cutting machine.
3.Rated currect is for 80Amp.
4.Cutting thickness is for 20-25mm
0
|
Technical Data |
|
|
Current |
80 Amp |
|
Duty Cycle |
60% |
|
Gas |
Air |
|
Gas Pressure |
4.5-5.0 Bar |
|
Gas Flow |
200LPM |
|
Ignition |
HF (high frequency) |
|
Post Flow |
80 Seconds |
|
Standard Length |
5M / 8M |

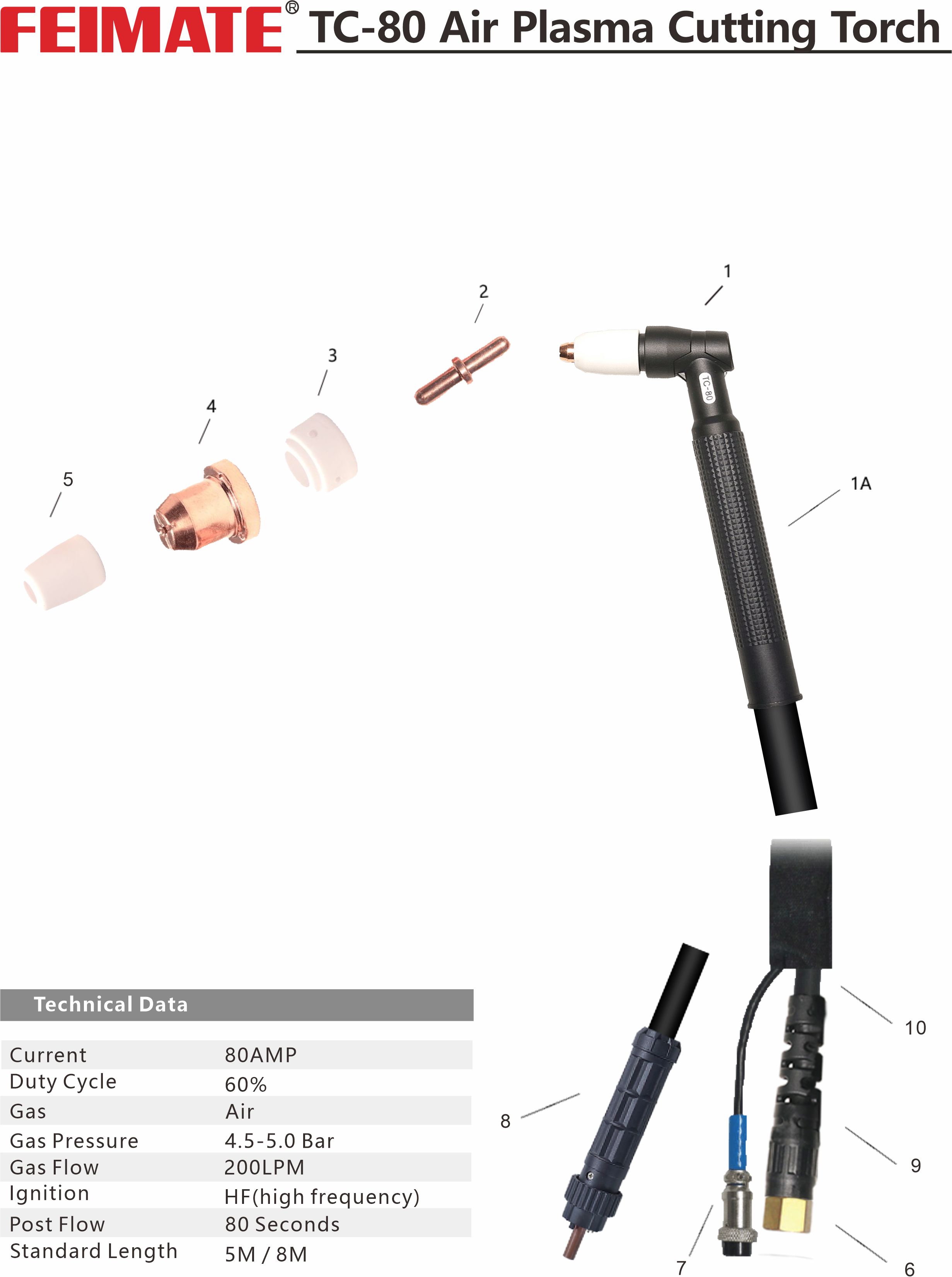

Products Specification:
|
NO. |
Code |
Description |
Ref |
|
1 |
TC8001 |
Torch Head |
|
|
|
TC8001A |
Torch Head (Round handle) |
|
|
2 |
TC8002 |
Electrode |
|
|
3 |
TC8003 |
Gas Diffuser |
|
|
4 |
TC8004 |
Tip 1.2mm |
|
|
5 |
TC8005 |
Shield Cup |
|
|
6 |
TC8006 |
End Connector (M16*1.5 Nut) |
|
|
7 |
TC8007 |
Central Adaptor |
|
|
8 |
TC8008 |
2-Pins Plug |
|
|
9 |
TC8009 |
Protection sleeve |
|
|
10 |
TC8010 |
Cable Assembly (8MMSQ) |
|
